🔌 Why Are Chargers Getting Smaller and Smarter? Meet the Technology Behind the Trend: Planar Transformers

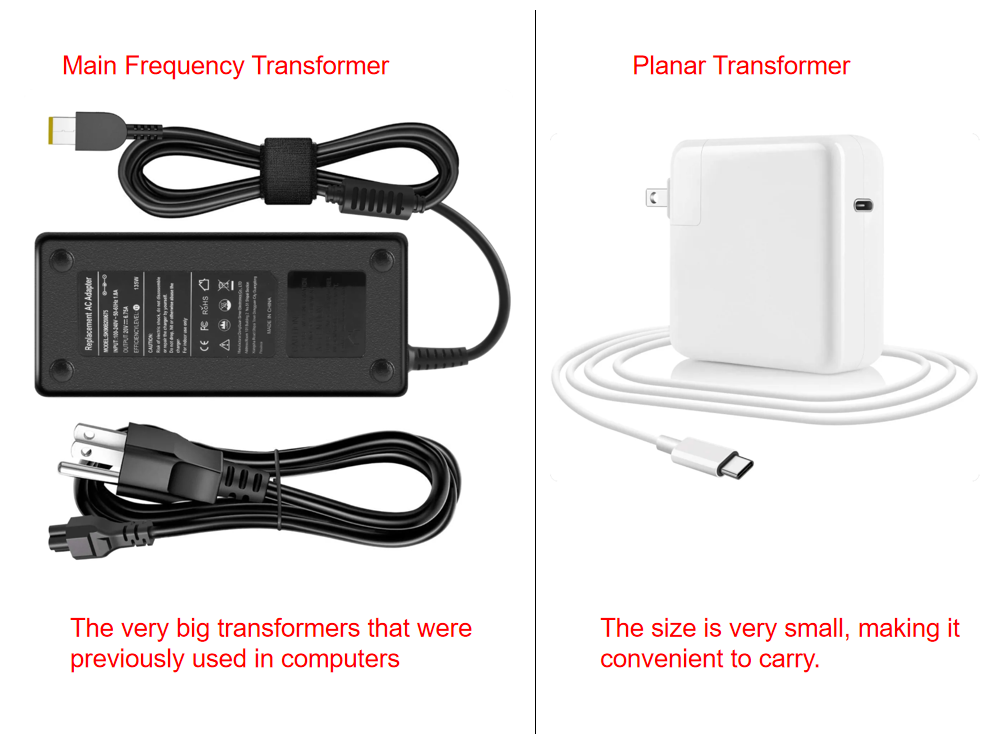

Have you noticed that today’s phone and laptop chargers are getting smaller, lighter, and cooler—even as they deliver more power?

Gone are the days of bulky bricks that heat up like a toaster. Now, even a 65W fast charger can be as small as your thumb.

While GaN (Gallium Nitride) technology gets most of the spotlight, there’s another game-changing player quietly working behind the scenes:

The Planar Transformer

⸻

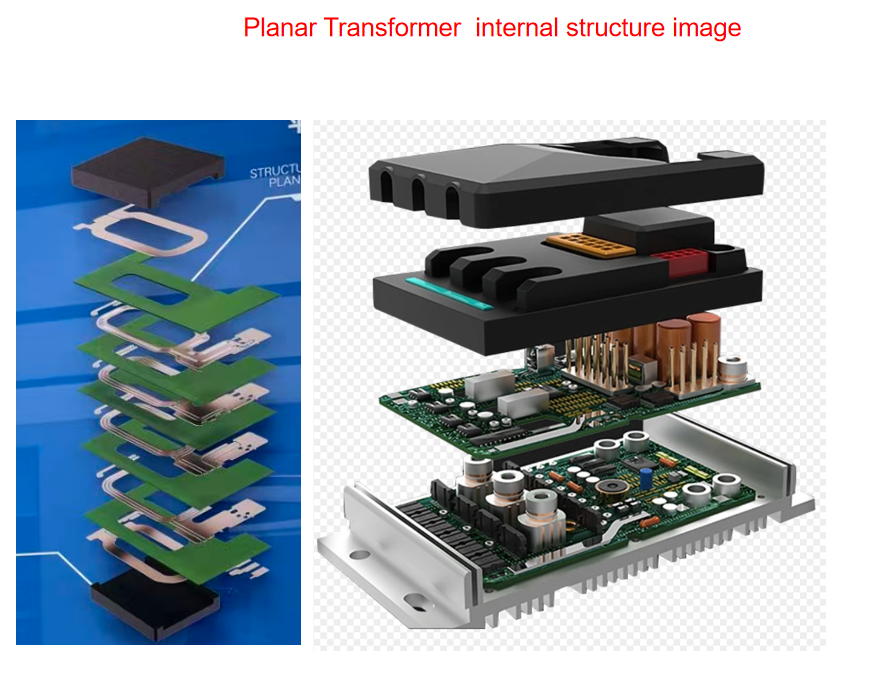

A planar transformer swaps traditional wound copper coils for flat, PCB-based conductors—like turning a bundle of wires into a printed circuit.

✅ It uses PCB layers or copper sheets instead of bulky wire windings
✅ It’s ultra-thin and compact while handling high power
✅ It offers better cooling and high efficiency, even in tiny fast chargers

⸻

🔍 Key Benefits of Planar Transformers:
⚡ Why Fast Chargers Love This Technology
Consumers expect power and convenience:
• Faster charging speeds
• Pocket-friendly size
• Less heat during use
• Higher energy efficiency

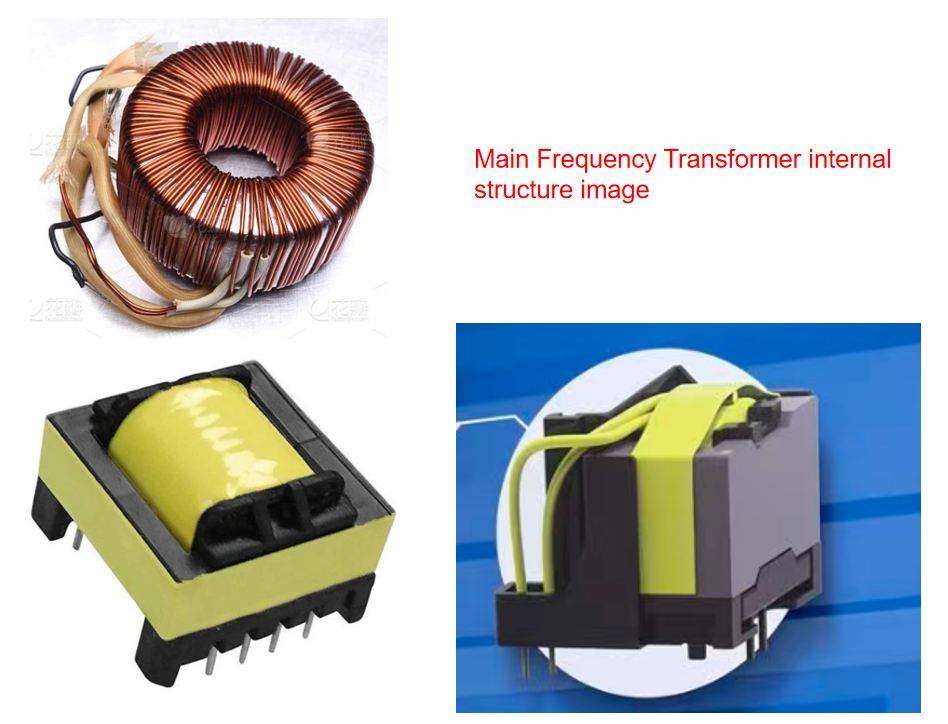

Traditional iron-core, low-frequency transformers just can’t keep up anymore. Paired with high-frequency switching and GaN power devices, planar transformers are now the go-to solution for modern charger designs.

They’re used not only in 20W phone chargers but also in 65W, 100W, and even 240W USB-C PD power adapters.

⸻

🪄 In a Nutshell:
Planar transformers are the secret ingredient driving the evolution of modern chargers—making them smaller, faster, and safer.

If you’re in hardware design, consumer electronics, or manufacturing, understanding this shift is key to building cutting-edge products.

⸻
